Технически характеристики

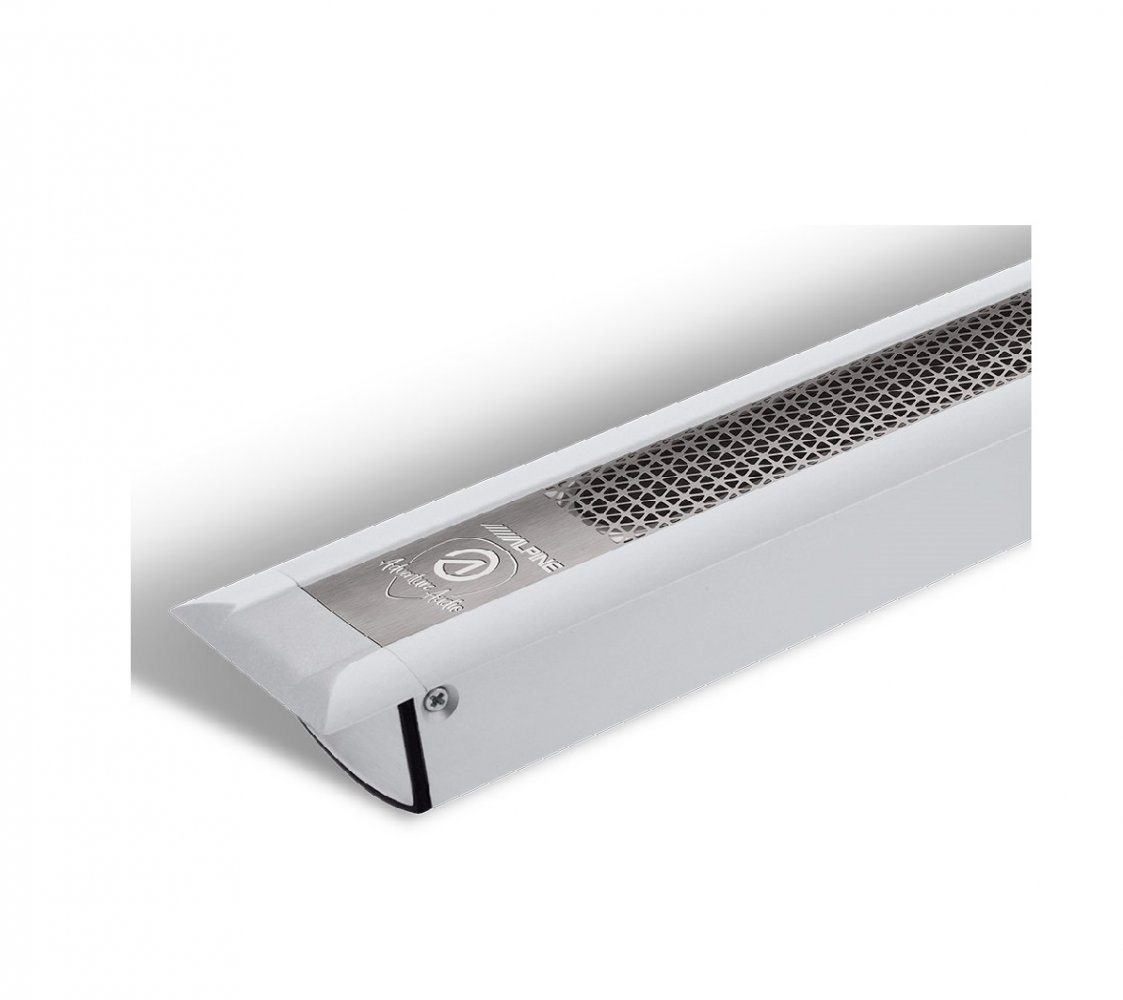

• 520mm In-Cabin Flush-Mount Speaker (1 piece)
• Silver Aluminum Housing

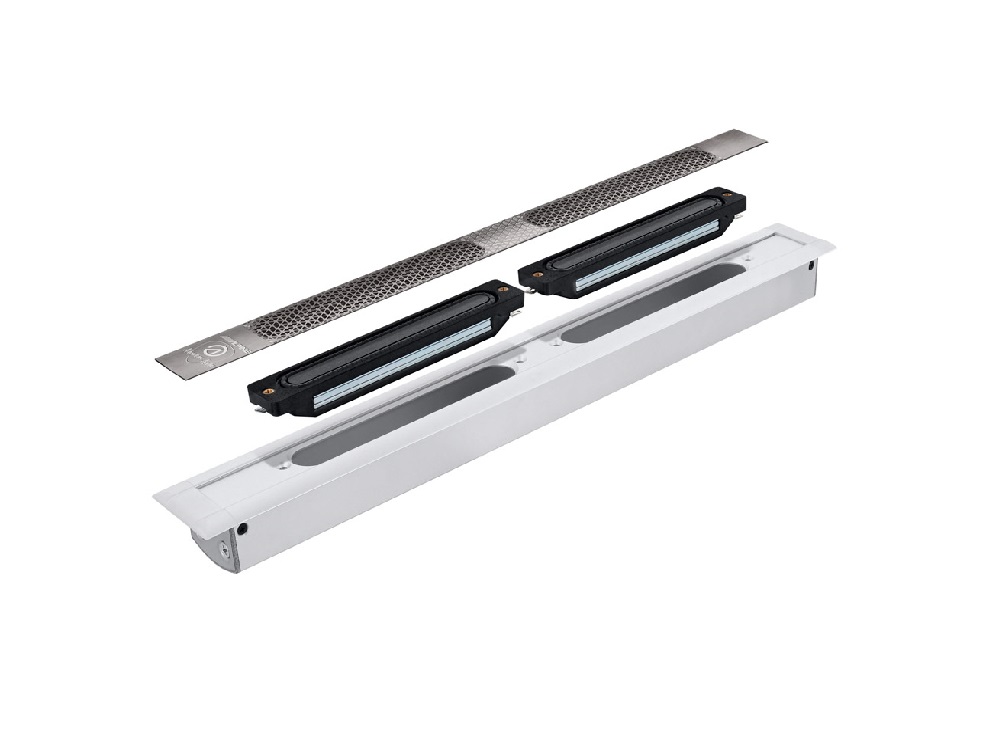

• 2 Ultra-Slim Carbon-Reinforced Drivers
• Grill orientation can be changed to match horizontal or vertical orientation
• Wide Dispersion Angle
• Removable End-Cap Screw-Covers
• Compatible with internal Head Unit amplifier

Specifications

General

• Peak Power: 100 Watts
• RMS Power: 50 Watts
• Nominal Impedance: 6 Ohm
• Frequency Response: 120Hz - 20kHz
• Sensitivity: 86.2dB/W/m
• Dimensions: 530mm (H) x 45mm (W) x 26mm (D)
• Cut-Out Requirements: 354mm x 38mm

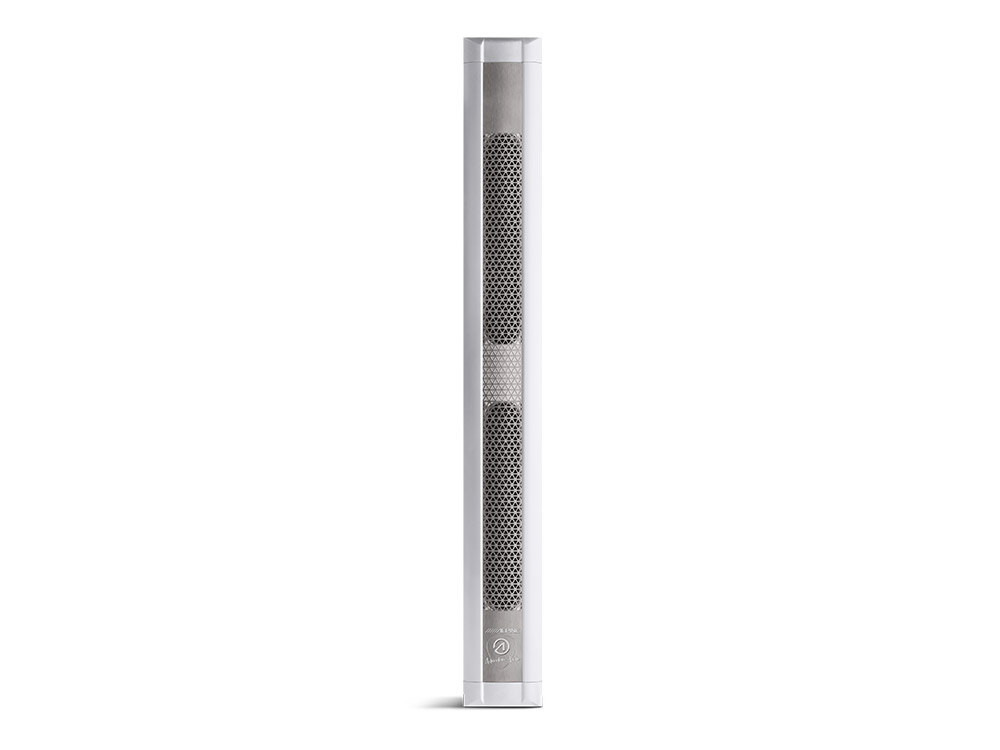

Vertical Installation

• Dispersion Angle (horizontal): 160°
• Dispersion Angle (vertical): 40°

Horizontal Installation

• Dispersion Angle (horizontal): 40°
• Dispersion Angle (vertical): 160°
