Технически характеристики

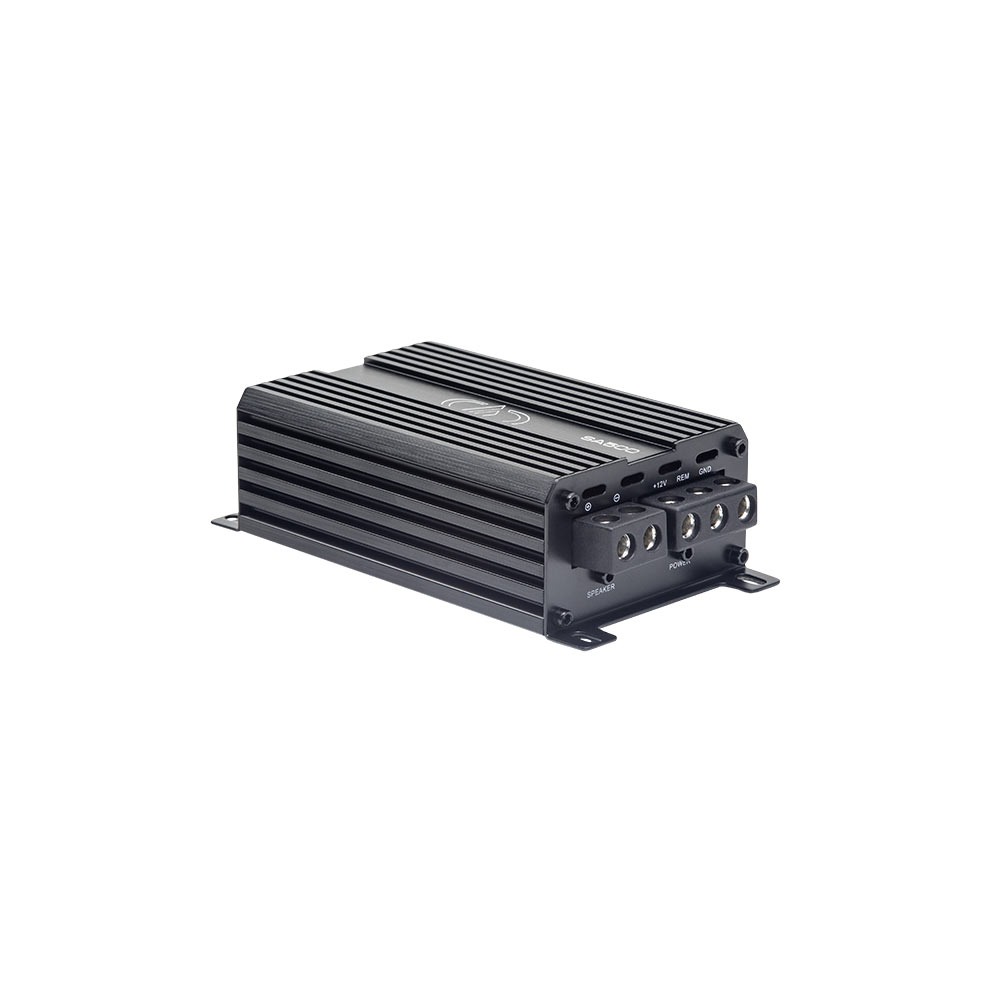

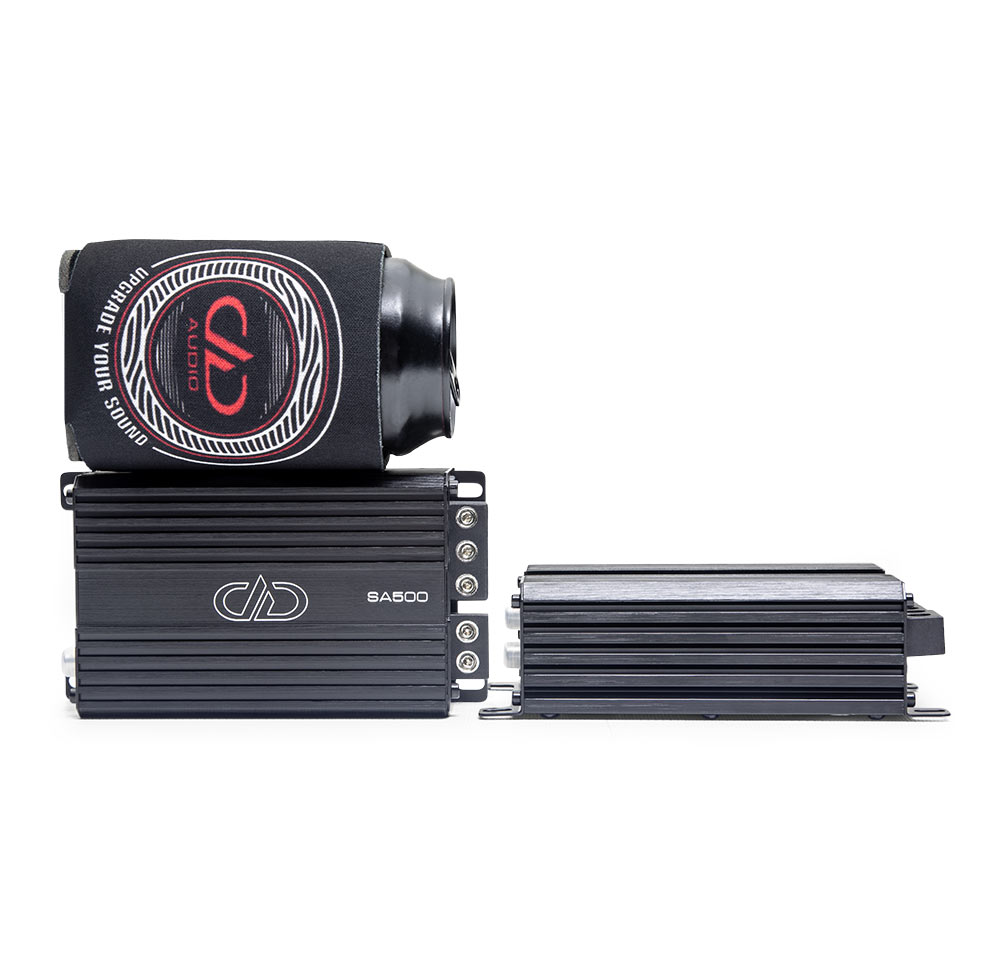

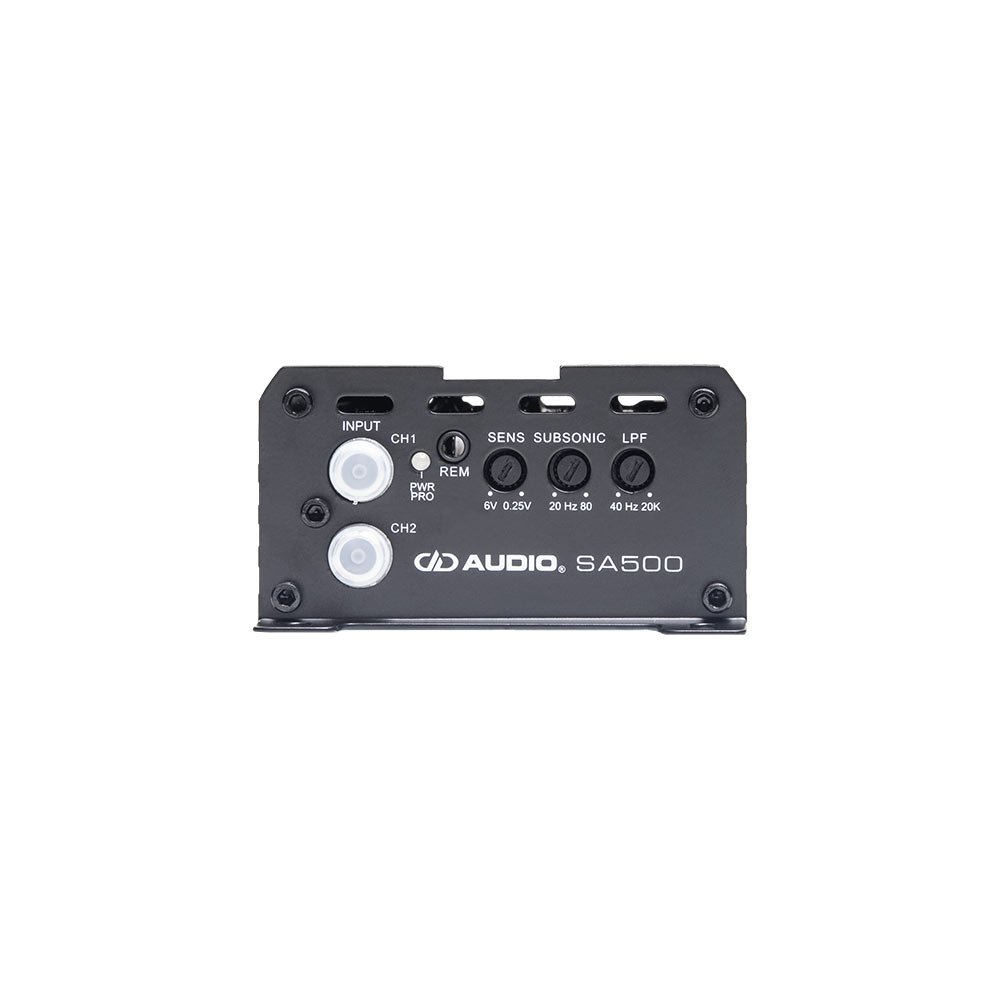

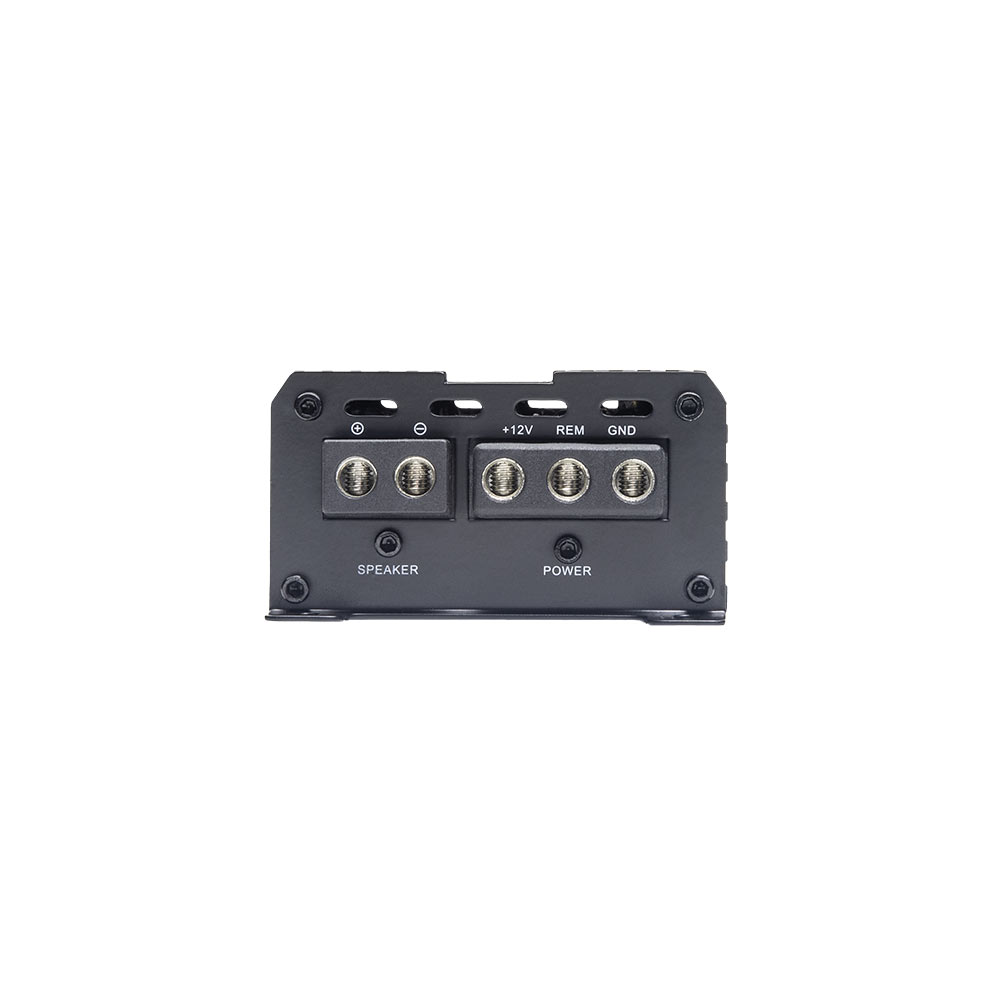

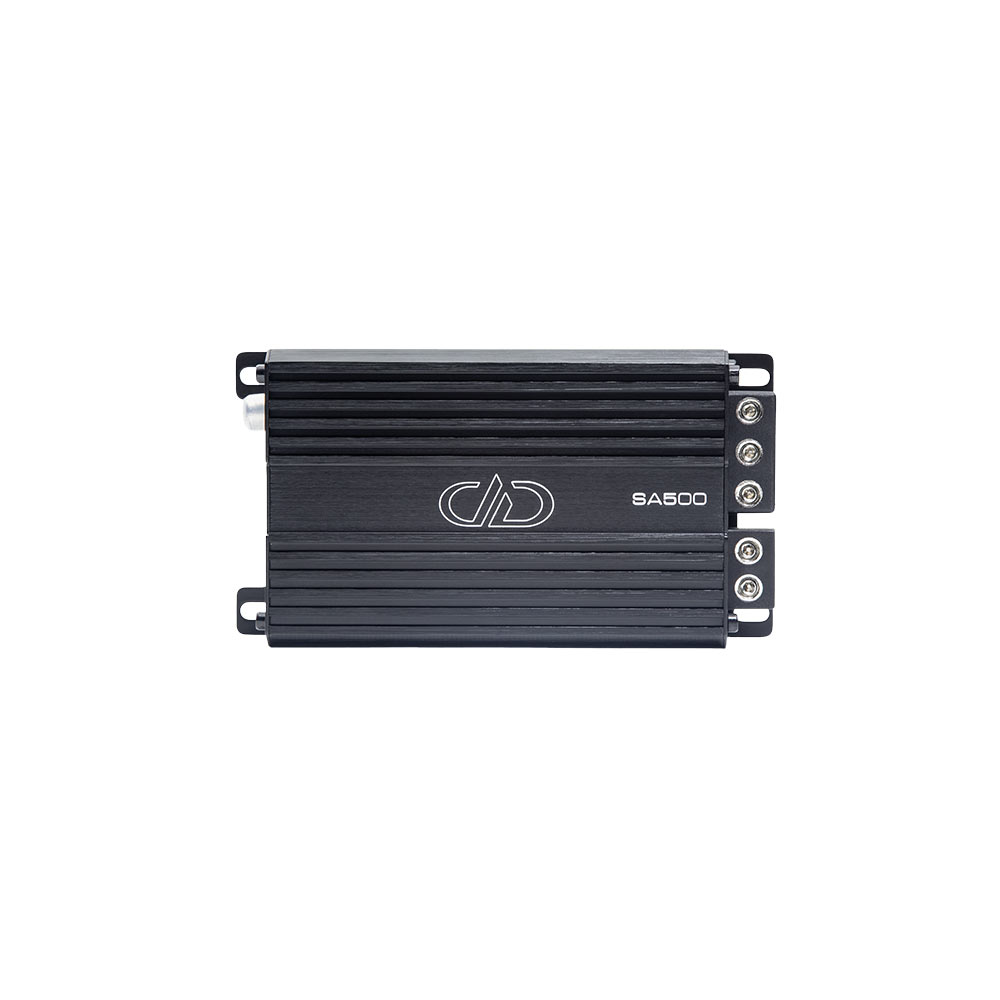

SA500 is the first in the new SA (Small Architecture) series of Micro Monoblock DD. This micro-sized amplifier gives 500 watts of continuous, pure power to 1 ohm load

The SA series amplifiers are the result of state-of-the-art uncompromising design, which, in addition to incredible sound quality, provide unprecedented power and size.

The SA series also uses a traditional DD AUDIO style frame to achieve maximum cooling

SA500 RCA connectors also support the speaker level signal (adapters are included in the package), so you can also connect this amplifier after the original player of the car. speaker supplies

Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel (s): 2
Output Channel (s): 1
Continuous Wattage @ 4ohm: 200
Continuous Wattage @ 2ohm: 325
Continuous Wattage @ 1ohm: 500
Max Current Draw (Amps): 50
RCA Input Voltage Consitivity: 6 - 0.25
High-Level Input Voltage Consitivity: 20 - 1.1
RCA Input S / N: 95
Damping Factor: 100
THD: 1.0%
Bass Boost: 12
Frequency Response (Hz): 30 - 20k
Sub-Sonic Filter: 20 - 80
Low-Pass Filter: 40 - 20k

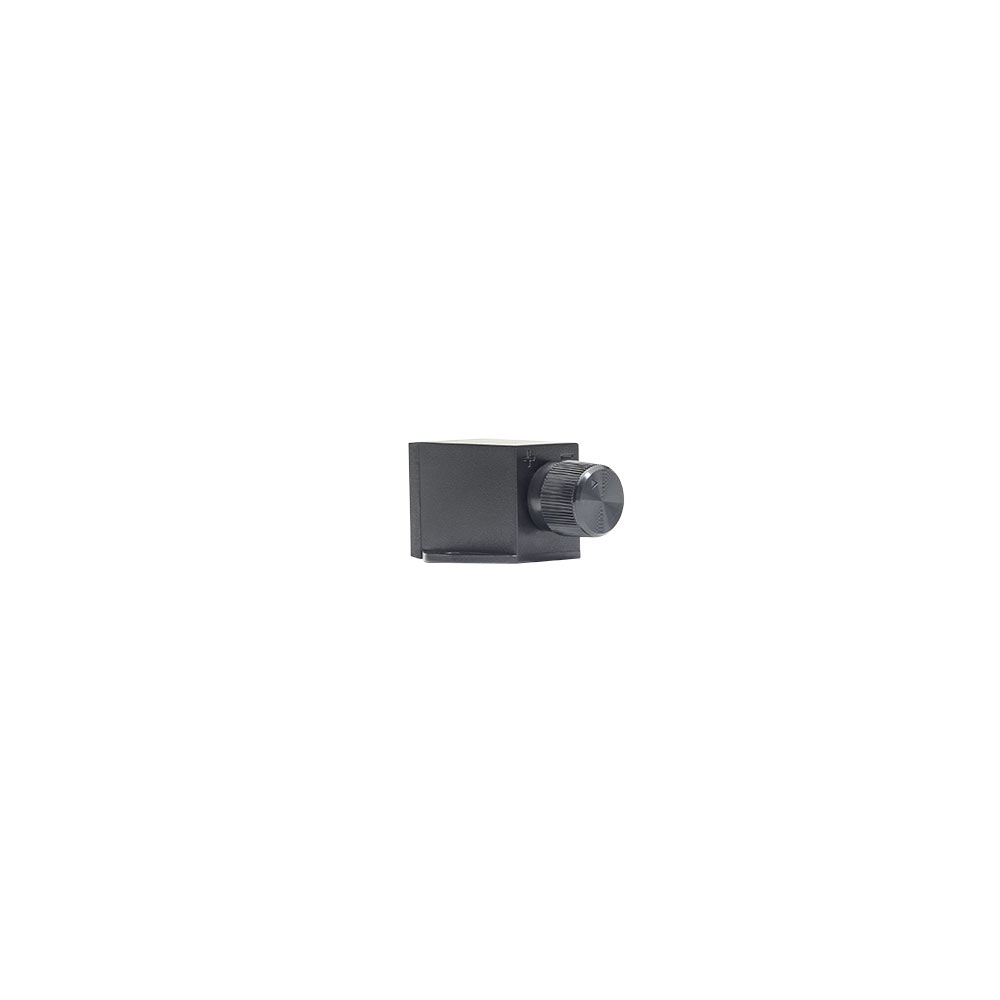

Remote Control: Remote Included in Box
Power Wire Gauge: 8
Speaker Wire Gauge: 8
Dimensions (Inches): 4.8 x 3.2 x 1.7
Dimensiones (MM): 121 x 81 x 43

Технически данни - Operating Voltage: 9 - 16 - Test Voltage: 14.4 - Input Channel(s): 2 - Output Channel(s): 1 - RMS мощност @ 1Ohm : 500W - Damping Factor: 100 Какво има в кутията Микро усилвател DD Audio SA500
