Технически характеристики

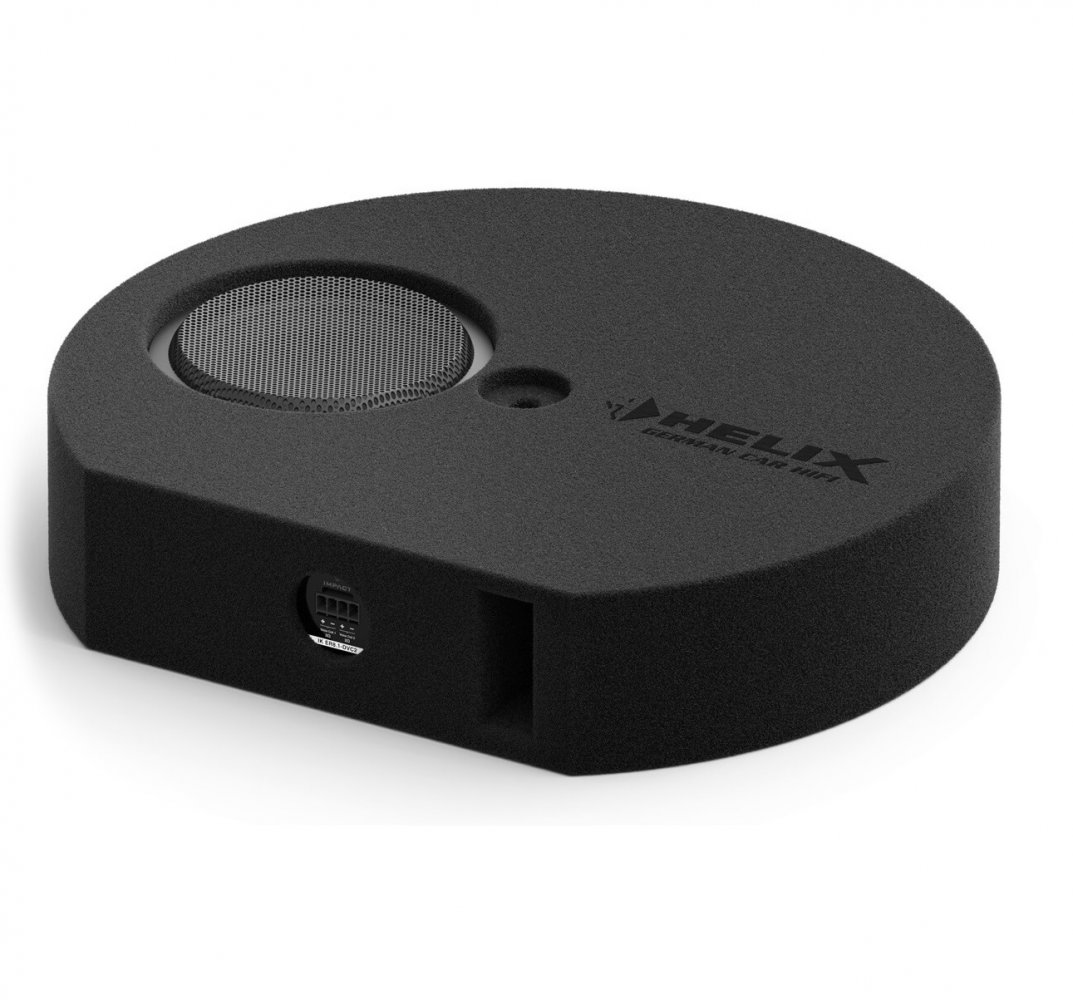

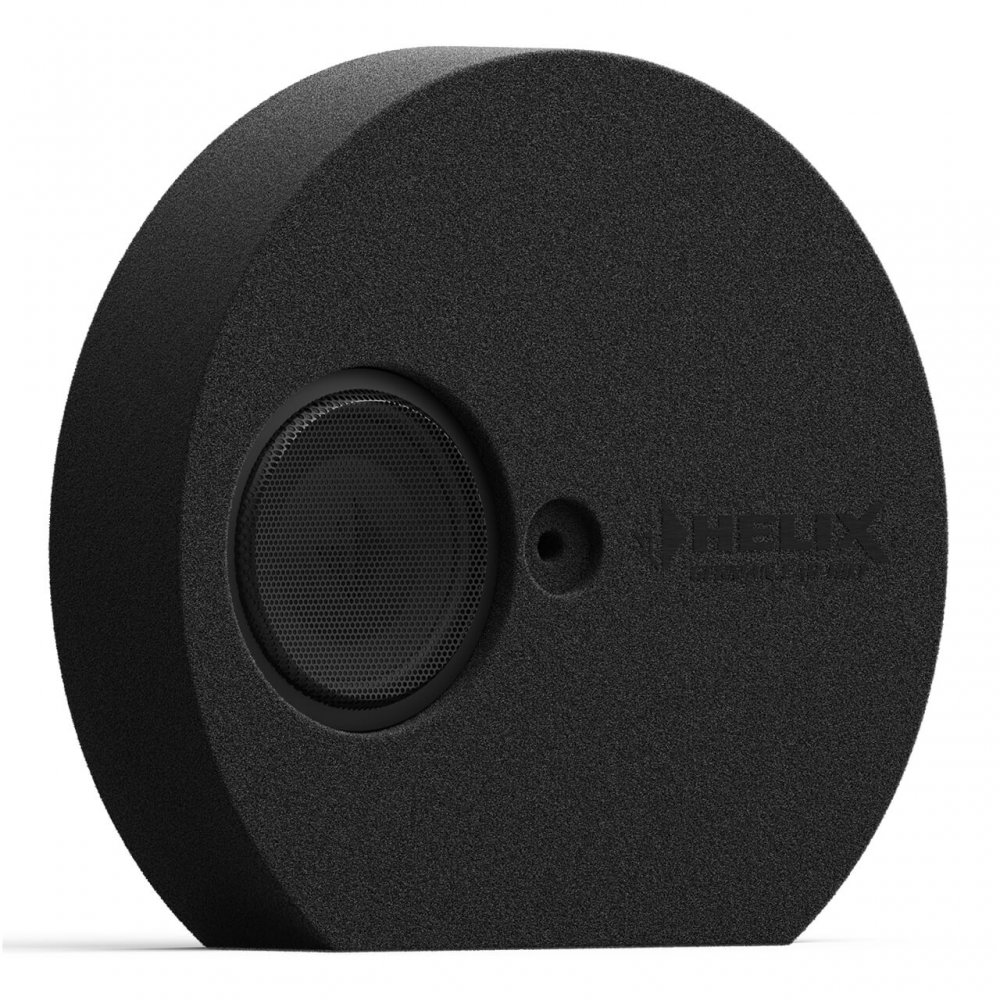

• - Compact, shallow round enclosure designed for space-optimized integration in flat spare wheel recesses
• - Sophisticated, vented construction design delivers outstanding sound quality and ideal bass dispersion in the vehicle
• - Equipped with one powerful 200 mm / 8” woofer with sandwich paper cone for rich, deep bass

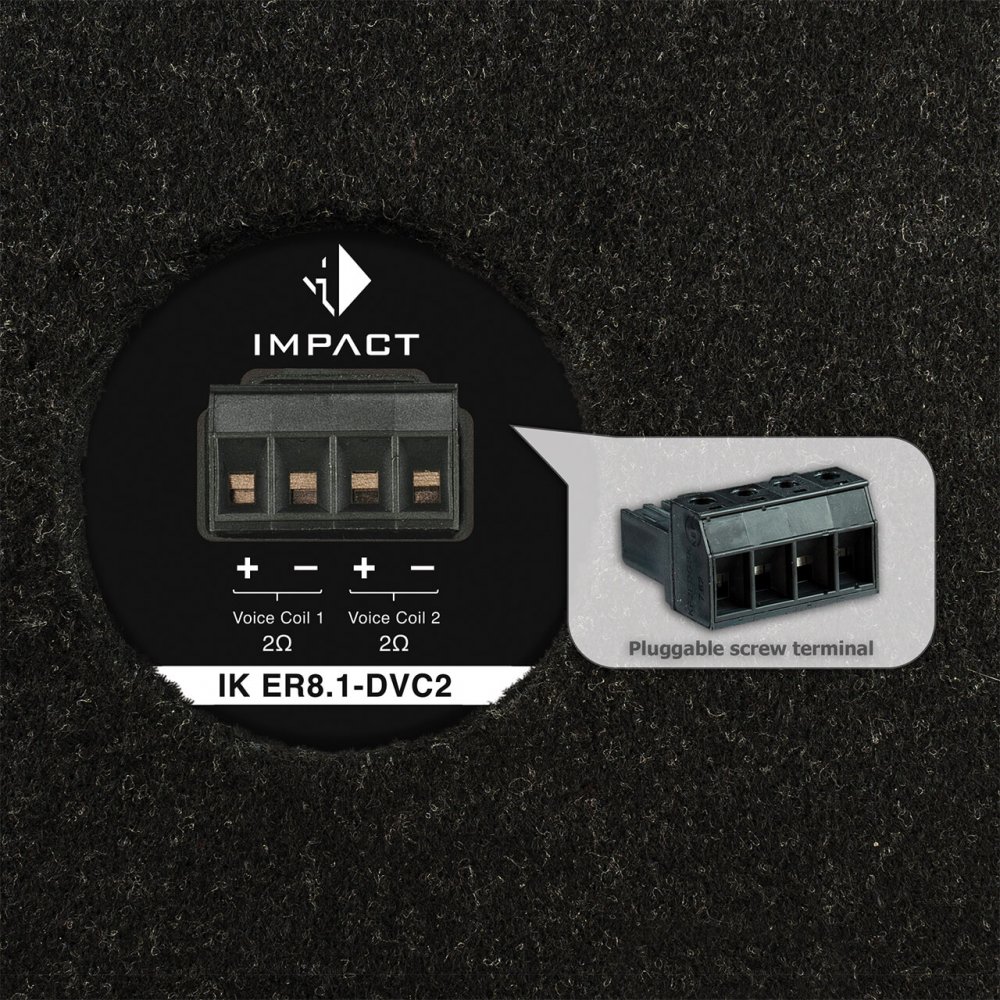

• - Pluggable screw terminal for quick and safe installation and removal
• - Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
• - Flush-mounted subwoofer chassis for space-saving design and enhanced protection
• - Sturdy carpet surface with embroidered HELIX logo
• - Including mounting kit which facilitate secure fixation of the enclosure in spare wheel recesses (see data sheet)

Технически данни - Power handling RMS P 300 Watts - Recommended amplifier power RMS 150 - 300 Watts - Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω - Max. linear excursion Xmax +/- 6.0 mm - Port tuning frequency Fb 42 Hz - Sensitivity SPL 88 dB @ 2.83V / 1m 85 dB @ 1W / 1m - Dimensions (D x H) 580 x 120 mm / 22.8 x 4.7” - Integrated subwoofer chassis HELIX IK S8-DVC2 - Recommended DSP settings "Self-define" highpass 35 Hz / Q = 1.0; EQ filter: not required Какво има в кутията 1 x басрефлексен бокс с 8" (20см) суббас за вграждане на мястото на резервната гума IK ER8.1-DVC2
1 x Крепежни елементи
1 x техническа спецификация
